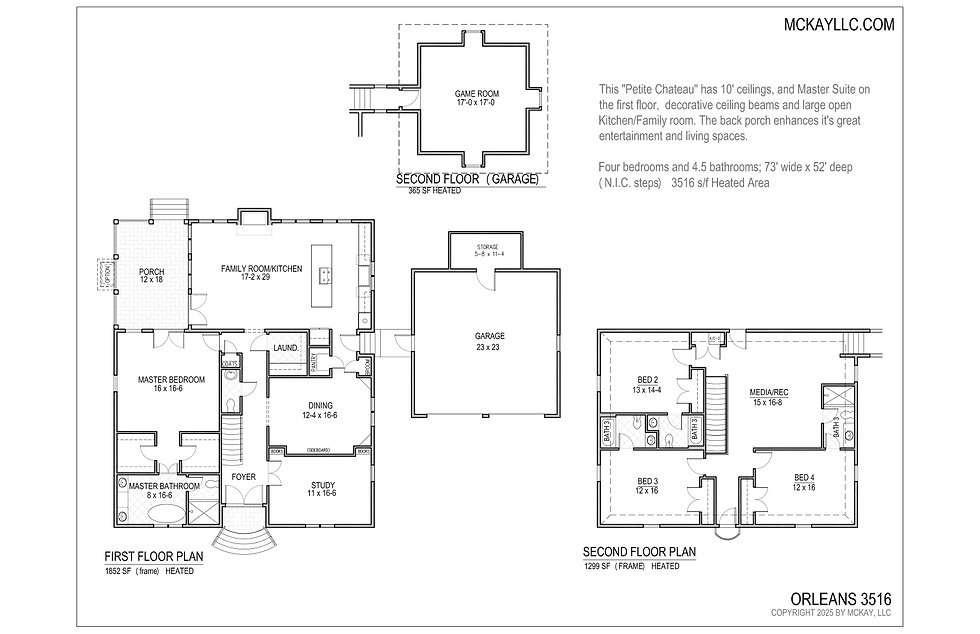

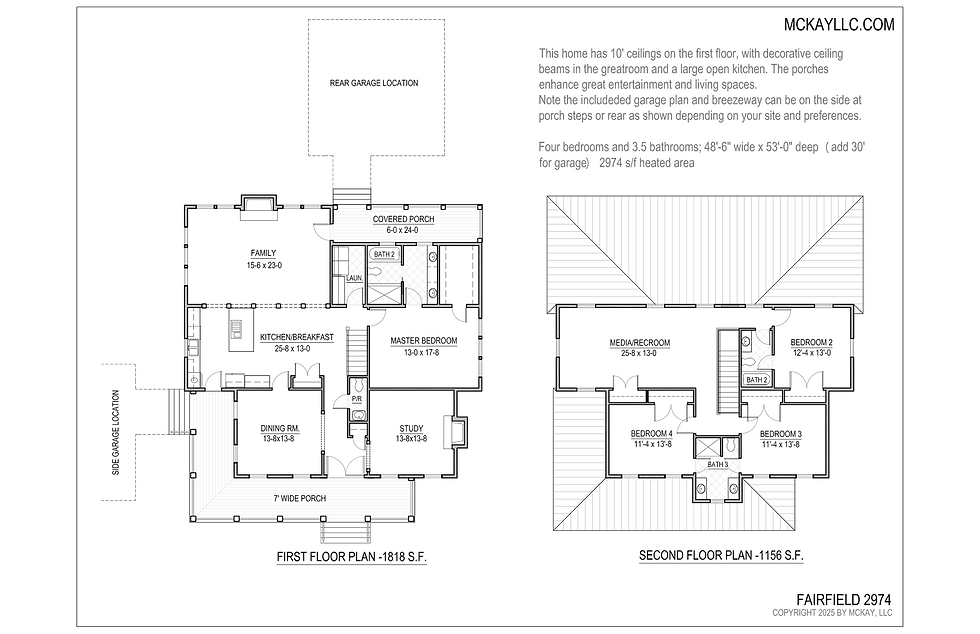

DIMENSIONED FLOOR PLANS:  -¼” SCALE

DIMENSIONED ELEVATIONS (ALL SIDES):  -1/4” SCALE

ROOF PLAN:  -1/4” SCALE

FOUNDATION AND FLOOR FRAMING PLANS:  ¼” SCALE

ARCHITECTURAL SECTION AND DETAILS:  ½” & 1” SCALE

ONE & TWO CAR GARAGE PLANS IF THE HOME HAS NO ATTACHED GARAGE:  ¼” SCALE

MIRROR IMAGE FLOOR PLANS:  ¼” SCALE.

SOME OF THE SMALLER DESIGNS ALSO INCLUDE SLAB-ON-GRADE PLANS:  ¼” SCALE



THE PACKAGE INCLUDES SIX COMPLETE SETS OF 24” x 36” BOND PRINTS AND WILL BE SHIPPED WITHIN SEVEN DAYS OF PAYMENT CLEARANCE BY GROUND UPS OR FED-EX.



SQUARE FOOTAGE CALCULATION ( THE NUMBER IN EACH HOME’S NAME) IS DETERMINED AS HEATED FLOOR AREA TO THE OUTSIDE FACE OF STUDS ON ALL FLOORS LESS  STAIR AND FLOOR OPENINGS.



PURCHASING A HOME ALLOWS JUST ONE HOME OR DUPLEX TO BE CONSTRUCTED FROM THE DRAWINGS.  WE WILL MAKE ALLOWANCES FOR MULTIPLE LICENSES FOR BUILDERS, DEVELOPERS OR A HOMEOWNER WHO RELOCATES AND WANTS TO RE-BUILD THE SAME PLAN ELSEWHERE.  CONTACT US FOR PRICING.
